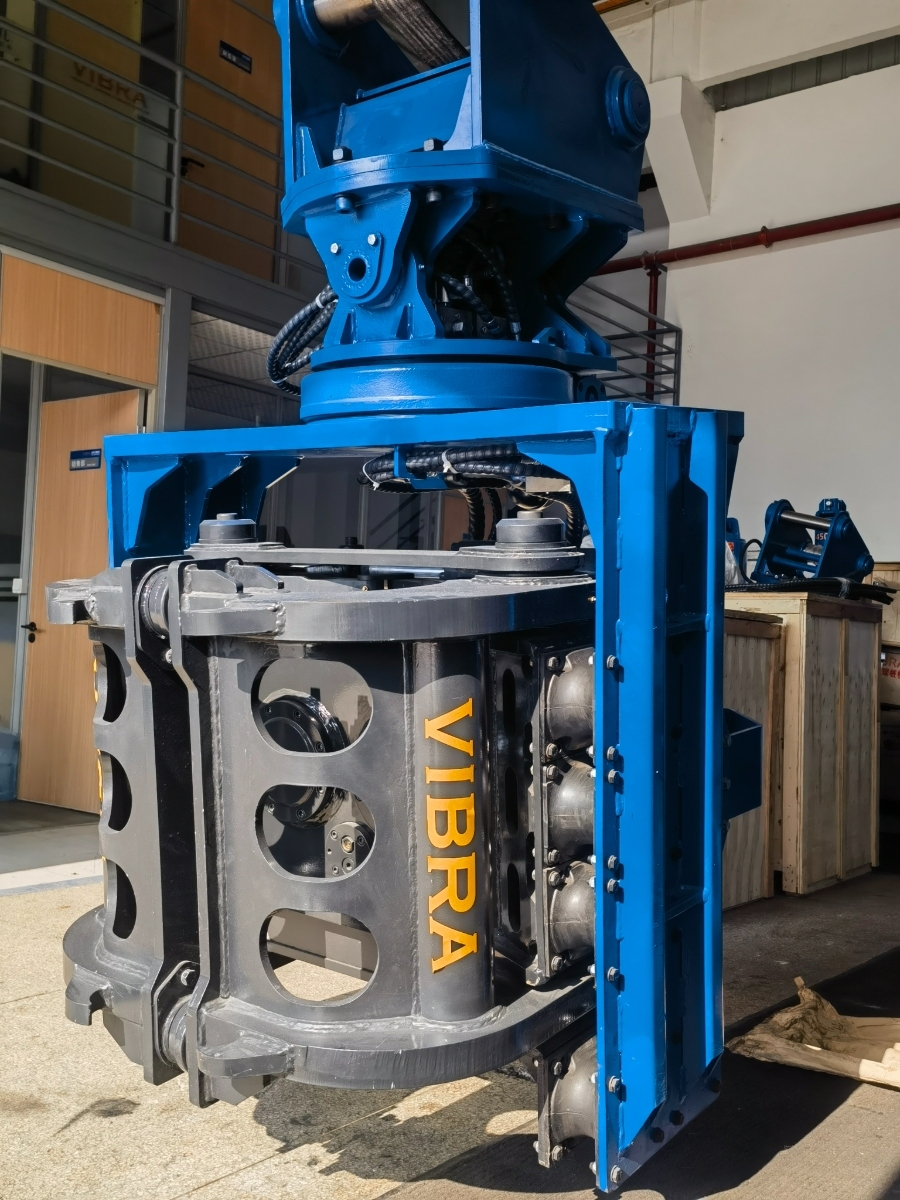

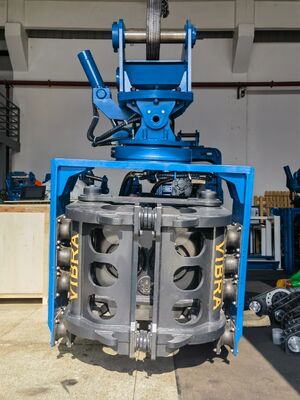

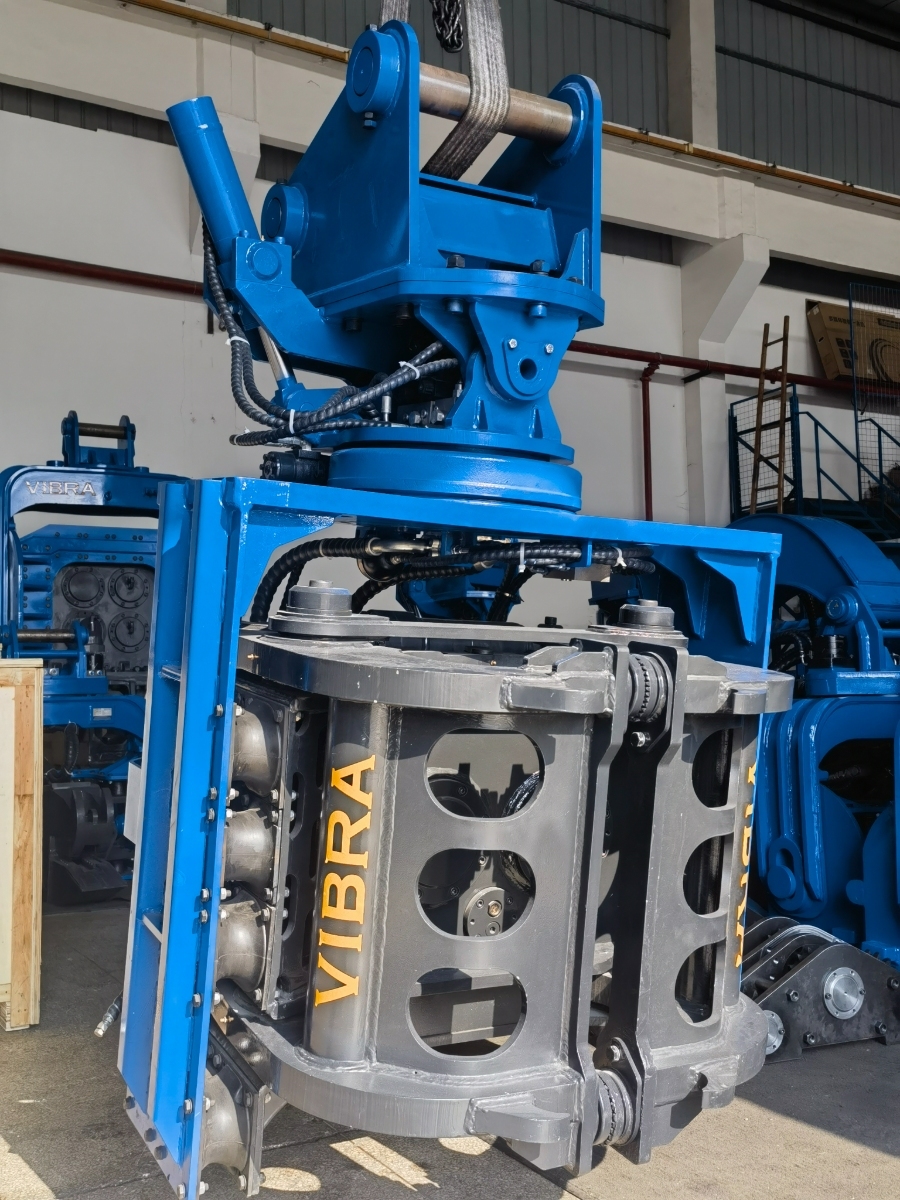

SV-300 Side Grip Pile Driver – Mid-Range Powerhouse for Demanding Projects

The SV-300 Side Grip Pile Driver is a mid-range hydraulic vibratory hammer attachment engineered to transform standard 25–32 ton excavators into high-performance piling rigs. Designed for contractors who need power, precision, and reliability in confined spaces, the SV-300 delivers 558 kN centrifugal force and a robust 385 kN side clamp. It handles the complete piling cycle—clamping, positioning, driving, and extraction—without a crane or auxiliary equipment. Ideal for bridge underpasses, factory extensions, urban infrastructure, and railway projects where space is limited but performance cannot be compromised.

• Side Clamp (385 kN): Provides secure gripping during pile positioning and extraction.

• Bottom Clamp (490 kN): Ensures stable clamping during driving, preventing slippage even under high impact.

• Seamless Workflow: Operators can switch between clamping, driving, and extraction from the cab—no helper equipment needed.

• 360° Continuous Rotation: Align piles from any angle without moving the excavator.

• ±30° Bidirectional Side Tilt: Achieve precise vertical alignment on uneven terrain or under low overhead obstructions.

• Replaceable Standard Clamp Seat Interface: Quickly adapt to different pile types:

  • Steel sheet piles (Larssen, straight web)

  • H-beams (HP sections)

  • Circular pipe piles

• Minimal Downtime: Quick-change design keeps your project moving.

• Operates at 32 MPa, matched to 25–32t excavator hydraulics.

• Frequency range 2,300–3,000 rpm adapts to varying soil conditions—higher frequencies for granular soils, lower for cohesive ground.

• Reinforced Box-Style Housing: Resists torsional stress during tough jobs.

• Hardened Steel Clamp Jaws: Extended service life even in abrasive soils.

• Easy Maintenance: Centralized grease points and readily accessible wear parts reduce downtime.

A: The SV-300 is designed for 25–32 ton excavators from all major brands (Cat, Komatsu, Hitachi, Kobelco,  Hyundai, Doosan, JCB, etc.). We provide custom mounting brackets to match your machine's arm pin dimensions.

A: Yes. The SV-300 performs full-cycle piling—clamping, positioning, driving, and extracting—using the same attachment. The dual-clamp system provides sufficient grip for extraction forces.

A: It handles:

• Steel sheet piles: Up to 15 m length (depending on soil conditions)

• H-beams: Up to 500 mm section height

• Pipe piles: Up to 800 mm diameter
  Contact us with your specific pile dimensions for a compatibility check.

A: No. The SV-300 is directly driven by your excavator's hydraulic system. We recommend verifying that your machine can supply 220–280 L/min at 32 MPa. A hydraulic flow and pressure test can be arranged.

A: Installation takes approximately 2–3 hours:

1. Remove bucket and link.

2. Mount the SV-300 bracket to the excavator arm.

3. Connect hydraulic hoses to the excavator's auxiliary circuit (breaker or hammer lines).

4. Test rotation and clamp functions.
   A detailed installation manual and on-site support are available.

A: Standard warranty is 12 months from the date of shipment, covering manufacturing defects. Extended warranty options are available upon request.

A: Yes. We have authorized service partners in India, Indonesia, Vietnam, Thailand, and Russia. For other markets, we offer remote troubleshooting and rapid spare parts dispatch.

A: The SV-300 is designed for above-water and splash-zone applications. For fully submerged piling, please inquire about our dedicated underwater hammer models.

A: The SV-300 offers higher centrifugal force (558 kN vs. 459 kN), stronger bottom clamp (490 kN vs. 385 kN), and is compatible with larger excavators (25–32t vs. 20–25t). It is the ideal choice for mid-range projects requiring extra power and stability.

In markets like India's rapid infrastructure expansion, Southeast Asia's booming construction sector, and Russia's large-scale industrial projects, contractors face a common challenge: delivering high-quality results in confined spaces with tight budgets. The SV-300 Side Grip Pile Driver bridges the gap between compact agility and heavy-duty power.

• For Indian contractors: Handle deep foundations and urban metro projects with precision.

• For Southeast Asian projects: Overcome soft soils and tight urban sites with efficient, one-man piling.

• For Russian industrial sites: Drive heavy piles in remote locations without relying on large cranes.

The SV-300 delivers the power you need, in the spaces you have, at a cost you can control.

Contact us today for a quotation or to arrange a demonstration with a compatible excavator in your region.
